0.5-4.5VDC Barometric Hydraulic Brass Pressure Sensor Transmitter

Product Categories

Hefei WNK Smart Technology Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : WNK

Model Number : WNK83MA

Place of Origin : China (Mainland)

MOQ : 1Piece

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 5000+Piece+perMonth

Delivery Time : 5-8 work day

Packaging Details : standard export carton box

Accuracy : 1%

Measured media : Liquid, gas and steam

Pressure range : 0-2000kPa

Output signal : 0.5-4.5 VDC

Power supply : 4.75-5.25 VDC

Material : Brass

Process connection : G1/4,1/4NPT

Electrical connection : Packard/ Cable Outlet

Contact Now

0.5-4.5VDC Barometric Hydraulic Brass Pressure Sensor Transmitter For Arduino

Mini brass pressure sensor,range 0-20bar,temp range -20 to 70ºC,output 0.5-4.5V,suitable for gauge pressure ,sealing pressure.

This product is in stock, please place an order directly.

If you have any other questions, please feel free to contact us.

Applicable media	Liquid, gas, steam
Pressure range	0-10bar, 0-20bar
Cell	Ceramic capacitive pressure sensor
Pressure measurement	Gauge pressure, sealing pressure, absolute pressure
Output	0.5-4.5VDC
Power supply	4.75-5.25VDC
Accuracy(linearity, hysteresis and repeatability)	1%F.S.
Work temperature	-20~70ºC
Ambient temp	-40~110ºC
Temperature drift(zero)	±0.15% F.S. (-20~70ºC)
Temperature drift(full range)	±0.15% F.S. (-20~70ºC)

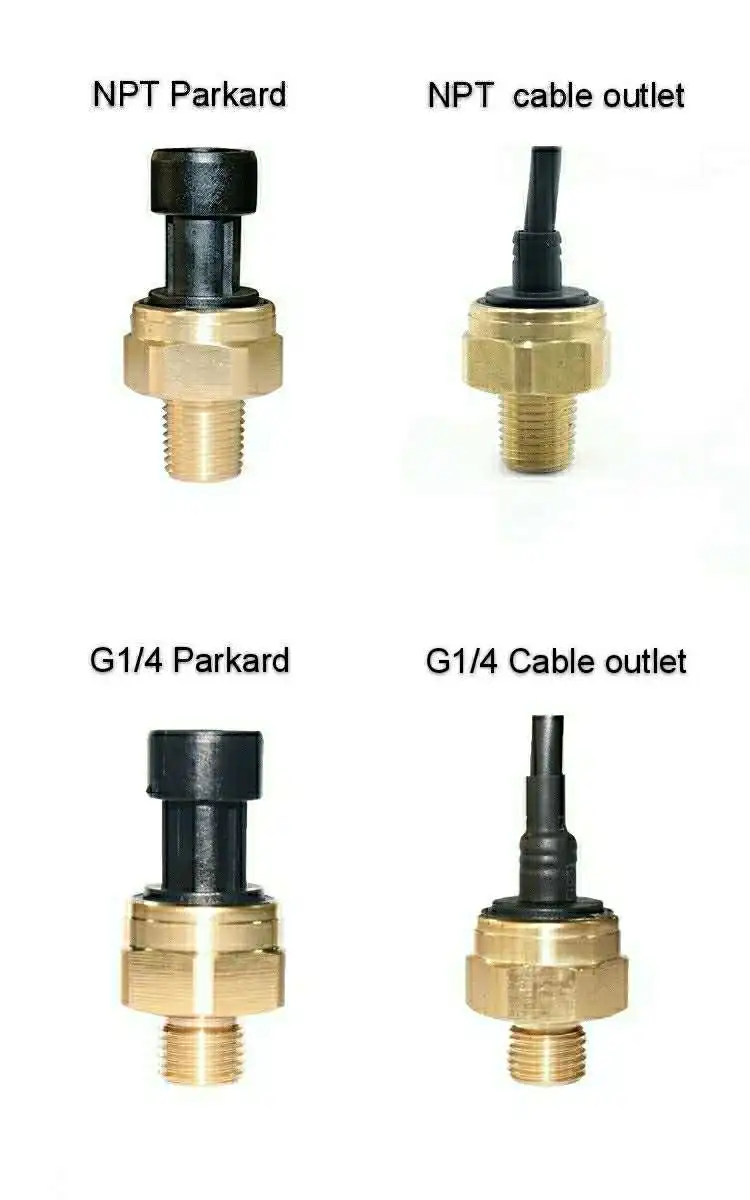

Electrical connection	Cable outlet/Packard
Mechanical connection	1/4NPT/G1/4
Housing material	Brass

Mechanical Dimension:

0.5-4.5VDC Barometric Hydraulic Brass Pressure Sensor Transmitter
